- DIP

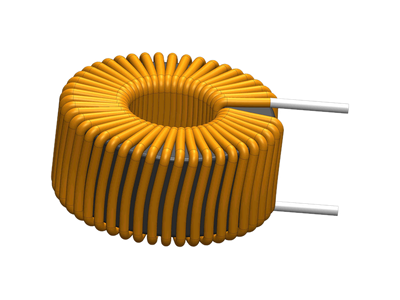

AP1106xxx Series
• Sendust core is used to realize lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance range from 150uH to 300uH. Custom values are welcomed
• Ideally used as Power Factor Correction choke
• Also can be used as boost inductor in power supplies
• Ø33.0 × 33.0 x 18.0mm Max.Custom values are welcomed
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance range from 150uH to 300uH. Custom values are welcomed
• Ideally used as Power Factor Correction choke
• Also can be used as boost inductor in power supplies
• Ø33.0 × 33.0 x 18.0mm Max.Custom values are welcomed
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 33 | 33 | 18 | 150uH, 20%, 25.1mOhm, 6Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 33 | 33 | 18 | 200uH, 20%, 34.5mOhm, 5.4Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 33 | 33 | 18 | 227uH, 20%, 36.5mOhm, 5Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 33 | 33 | 18 | 240uH, 20%, 38mOhm, 4.8Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 33 | 33 | 18 | 300uH, 20%, 49.5mOhm, 4.2Amp Max. DIP Toroidal Inductor | Data Sheet |
