- DIP

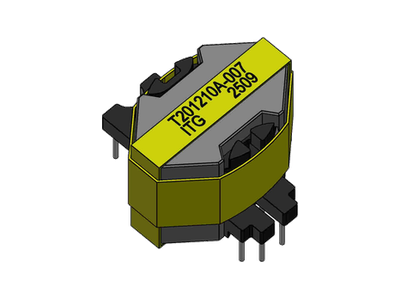

T201210A Series
• 65 Watt Flyback transformer
• 25.00 x 25.00 mm Max footprint with 17.50 mm Max height
• Isolation voltage: 3.0kV AC at 5.0mA, 2 sec
• Operating temperature: -40C~+125C
• RoHS and Halogen Free compliance
• 25.00 x 25.00 mm Max footprint with 17.50 mm Max height
• Isolation voltage: 3.0kV AC at 5.0mA, 2 sec
• Operating temperature: -40C~+125C
• RoHS and Halogen Free compliance
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 17.5 | 25 | 25 | 120.0uH, 10%, 150.0mOhm, 4.0Amp Isat. DIP Flyback Transformer | Data Sheet |
