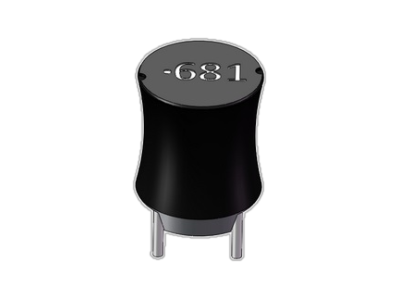

SCH3532T Series
• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9 | 8 | 9 | 10uH, 20%, 41mOhm, 7.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 100uH, 10%, 328mOhm, 2.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 1,000uH, 10%, 3,170mOhm, 0.72Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 12uH, 20%, 50mOhm, 6.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 120uH, 10%, 376mOhm, 2.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 15uH, 20%, 53mOhm, 6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 150uH, 10%, 480mOhm, 2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 18uH, 20%, 64mOhm, 5.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 180uH, 10%, 556mOhm, 1.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 22uH, 20%, 78mOhm, 5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 220uH, 10%, 688mOhm, 1.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 27uH, 20%, 98mOhm, 4.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 33uH, 20%, 111mOhm, 4.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 330uH, 10%, 962mOhm, 1.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 39uH, 20%, 138mOhm, 3.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 3.3uH, 20%, 15mOhm, 12.3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 47uH, 20%, 156mOhm, 3.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 470uH, 10%, 1,382mOhm, 1.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 4.7uH, 20%, 19mOhm, 11Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 56uH, 20%, 188mOhm, 3.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 560uH, 10%, 1,818mOhm, 1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 5.6uH, 20%, 24mOhm, 9.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 68uH, 20%, 215mOhm, 2.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 680uH, 10%, 2,321mOhm, 0.95Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 6.8uH, 20%, 28mOhm, 9.1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 82uH, 20%, 267mOhm, 2.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 820uH, 10%, 2,554mOhm, 0.85Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 8 | 9 | 8.2uH, 20%, 31mOhm, 8.5Amp Max. DIP Drum Inductor | Data Sheet |
