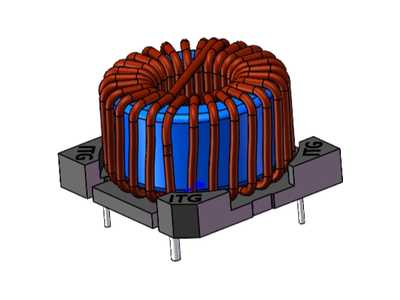

PFC173136D Series
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 104.0uH to 2200.0uH, custom values are welcomed
• High current output chokes, up to 37.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 43.9×43.9mm max., 34.5 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 104.0uH to 2200.0uH, custom values are welcomed
• High current output chokes, up to 37.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 43.9×43.9mm max., 34.5 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|
| 34.5 | 2200 | 305 | 43.9 | 43.9 | Power Factor Correction Chokes 2200.0uH, 7.8Amp, 305.0mOhm | Data Sheet | 3D Step File | ||
| 34.5 | 1500 | 203 | 43.9 | 43.9 | Power Factor Correction Chokes 1500.0uH, 9.5Amp, 203.0mOhm | Data Sheet | |||
| 34.5 | 1200 | 154 | 43.9 | 43.9 | Power Factor Correction Chokes 1200.0uH, 10.6Amp, 154.0mOhm | Data Sheet | 3D Step File | ||
| 34.5 | 1000 | 134 | 43.9 | 43.9 | Power Factor Correction Chokes 1000.0uH, 12.0Amp, 134.0mOhm | Data Sheet | |||
| 34.5 | 820 | 104 | 43.9 | 43.9 | Power Factor Correction Chokes 820.0uH, 13.3Amp, 104.0mOhm | Data Sheet | |||
| 34.5 | 690 | 95 | 43.9 | 43.9 | Power Factor Correction Chokes 690.0uH, 14.4Amp, 95.0mOhm | Data Sheet | |||
| 34.5 | 560 | 77 | 43.9 | 43.9 | Power Factor Correction Chokes 560.0uH, 16.1Amp, 77.0mOhm | Data Sheet | |||
| 34.5 | 470 | 67 | 43.9 | 43.9 | Power Factor Correction Chokes 470.0uH, 17.5Amp, 67.0mOhm | Data Sheet | |||
| 34.5 | 350 | 51 | 43.9 | 43.9 | Power Factor Correction Chokes 350.0uH, 20.4Amp, 51.0mOhm | Data Sheet | |||
| 34.5 | 250 | 38 | 43.9 | 43.9 | Power Factor Correction Chokes 250.0uH, 24.0Amp, 38.0mOhm | Data Sheet | 3D Step File | ||
| 34.5 | 203 | 30.5 | 43.9 | 43.9 | Power Factor Correction Chokes 203.0uH, 26.6Amp, 30.5mOhm | Data Sheet | |||
| 34.5 | 104 | 17.3 | 43.9 | 43.9 | Power Factor Correction Chokes 104.0uH, 37.1Amp, 17.3mOhm | Data Sheet |
