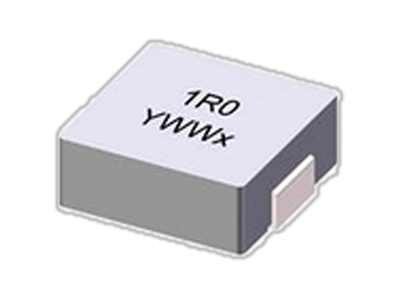

SM5018A Series
• 13.80x12.90mm foot Print, 5.00mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.15uH to 47.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 500 piece per 13 inches reel. RoHS and HF compliant.
• Inductance range from 0.15uH to 47.00uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 500 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 17.7 | 9 | 12 | 13.8 | 12.9 | 10uH, 20%, 17.7mOhm, 12Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 1 | 1.53 | 26 | 35 | 13.8 | 12.9 | 1uH, 20%, 1.53mOhm, 35Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 1.5 | 2.75 | 23 | 33 | 13.8 | 12.9 | 1.5uH, 20%, 2.75mOhm, 33Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 22 | 35.7 | 4.5 | 6.5 | 13.8 | 12.9 | 22uH, 20%, 35.7mOhm, 6.5Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 2.2 | 3.4 | 15 | 24 | 13.8 | 12.9 | 2.2uH, 20%, 3.4mOhm, 24Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 33 | 52 | 3.5 | 6 | 13.8 | 12.9 | 33uH, 20%, 52mOhm, 6Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 3.3 | 6.4 | 14 | 22 | 13.8 | 12.9 | 3.3uH, 20%, 6.4mOhm, 22Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 47 | 82.4 | 3 | 5 | 13.8 | 12.9 | 47uH, 20%, 82.4mOhm, 5Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 4.7 | 8.5 | 13 | 21 | 13.8 | 12.9 | 4.7uH, 20%, 8.5mOhm, 21Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 6.8 | 14.5 | 12 | 16 | 13.8 | 12.9 | 6.8uH, 20%, 14.5mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 8.2 | 16.5 | 10 | 14.5 | 13.8 | 12.9 | 8.2uH, 20%, 16.5mOhm, 14.5Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.15 | 0.35 | 45 | 75 | 13.8 | 12.9 | 0.15uH, 20%, 0.35mOhm, 75Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 5 | 0.36 | 0.71 | 42 | 75 | 13.8 | 12.9 | 0.36uH, 20%, 0.71mOhm, 75Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.47 | 0.8 | 40 | 64 | 13.8 | 12.9 | 0.47uH, 20%, 0.8mOhm, 64Amp Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 5 | 0.56 | 1.1 | 35 | 48 | 13.8 | 12.9 | 0.56uH, 20%, 1.1mOhm, 48Amp Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.68 | 1.38 | 33 | 46 | 13.8 | 12.9 | 0.68uH, 20%, 1.38mOhm, 46Amp Max. SMD Molded Inductor | Data Sheet |
