- DIP

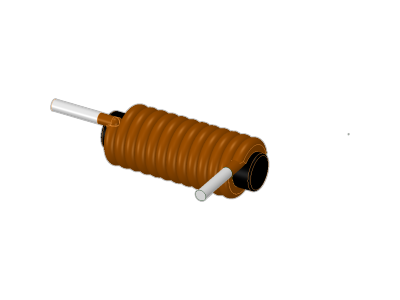

AK Series
• Low Cost Rod Choke for noise suppression or input filter application.
• AK type coils are applied for switching regulators, power amplifiers, power supplies, typewriters, automotive, monitors, TVs, UPS, SRC with high current circuits.
• Custom designs are welcomed!
• AK type coils are applied for switching regulators, power amplifiers, power supplies, typewriters, automotive, monitors, TVs, UPS, SRC with high current circuits.
• Custom designs are welcomed!
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 8 | 24.5 | 8.2 | 0.68uH, 20%, 2.2mOhm, 15Amp Max. DIP Rod Chokes | Data Sheet | |
| 5.5 | 10.3 | 9.8 | 1uH, 20%, 8mOhm, 9.5Amp Max. DIP Rod Chokes | Data Sheet | |
| 9.144 | 22.3 | 12 | 1uH, 20%, 2.5mOhm, 15Amp Max. DIP Rod Chokes | Data Sheet | |
| 7 | 19.4 | 11.3 | 1.4uH, 20%, 3mOhm, 20Amp Max. DIP Rod Chokes | Data Sheet | |
| 6 | 19.4 | 10.3 | 1.3uH, 20%, 5mOhm, 15Amp Max. DIP Rod Chokes | Data Sheet | |
| 6.5 | 19.5 | 10.8 | 2.2uH, 20%, 5mOhm, 15Amp Max. DIP Rod Chokes | Data Sheet | |
| 10 | 24.5 | 7.8 | 0.7uH, 20%, 2mOhm, 20Amp Max. DIP Rod Chokes | Data Sheet | |
| 11 | 24.7 | 12.5 | 1uH, 20%, 1.65mOhm, 16Amp Max. DIP Rod Chokes | Data Sheet |
