- DIP

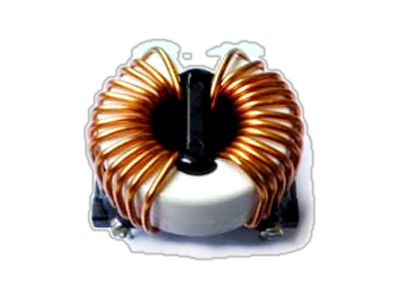

C30530 Series
• Single wire wound and very compact design.
• Inductance Range:9.0mH to 65.0mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current capability.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic head.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
• Inductance Range:9.0mH to 65.0mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current capability.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic head.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 25 | 35.5 | 30 | 9,000uH, 35%, 8.5mOhm, 14.5Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 23 | 34.5 | 30 | 10,500uH, 35%, 12mOhm, 8.9Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 23 | 34.5 | 30 | 14,000uH, 35%, 19.5mOhm, 5.6Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 23 | 34.5 | 30 | 23,500uH, 35%, 36mOhm, 4Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 23 | 34.5 | 30 | 45,000uH, 35%, 85mOhm, 2.4Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 23 | 34.5 | 30 | 65,000uH, 35%, 138mOhm, 1.7Amp Max. DIP Common Mode Chokes | Data Sheet |
