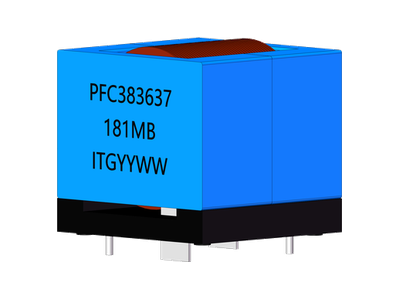

PFC383637B Series
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 185.0uH to 360.0 uH, custom values are welcomed
• High current output chokes, up to 32.4 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 37.5 x 36.5mm max., 36.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 185.0uH to 360.0 uH, custom values are welcomed
• High current output chokes, up to 32.4 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 37.5 x 36.5mm max., 36.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|
| 36 | 360 | 22 | 37.5 | 36.5 | Power Factor Correction Chokes 360.0uH, 23.3Amp, 22.0mOhm | Data Sheet | 3D Step File | ||
| 36 | 230 | 14.2 | 37.5 | 36.5 | Power Factor Correction Chokes 230.0uH, 29.2Amp, 14.2mOhm | Data Sheet | 3D Step File | ||
| 36 | 185 | 11 | 37.5 | 36.5 | Power Factor Correction Chokes 185.0uH, 32.4Amp, 11.0mOhm | Data Sheet |
