- DIP

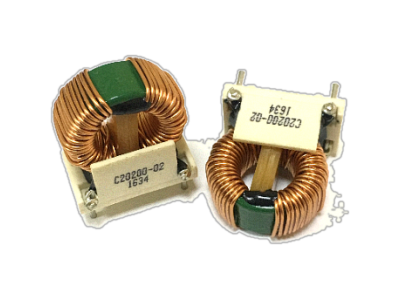

C20200 Series
• Single wire wound.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current capacity.
• dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic header.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 105℃.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current capacity.
• dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic header.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 105℃.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 22.86 | 19.3 | 12.5 | 4,000uH, 173mOhm, 1.7Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 22.86 | 19.3 | 12.5 | 2,500uH, 90mOhm, 2.4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 22.86 | 19.3 | 12.5 | 1,000uH, 22mOhm, 4.8Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 30.48 | 30.48 | 15.5 | 10,000uH, 170mOhm, 2.4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 30.48 | 30.48 | 15.5 | 7,000uH, 120mOhm, 2.8Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 30.48 | 30.48 | 15.5 | 5,000uH, 70mOhm, 3.7Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 30.48 | 30.48 | 15.5 | 2,000uH, 22mOhm, 6.6Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 30.48 | 30.48 | 15.5 | 1,000uH, 10mOhm, 10Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 36.83 | 34.29 | 20.6 | 30,000uH, 330mOhm, 2.3Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 36.83 | 34.29 | 20.6 | 20,000uH, 210mOhm, 1Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 36.83 | 34.29 | 20.6 | 12,000uH, 110mOhm, 4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 36.83 | 36.83 | 20.6 | 8,000uH, 55mOhm, 5.6Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 38.1 | 36.83 | 20.6 | 5,000uH, 22mOhm, 8.9Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 38.1 | 36.83 | 20.6 | 2,500uH, 11mOhm, 12.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 38.86 | 38.1 | 20.6 | 1,200uH, 6mOhm, 16Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 42.5 | 41.9 | 20.6 | 50,000uH, 450mOhm, 2.3Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 42.5 | 41.9 | 20.6 | 36,000uH, 300mOhm, 2.9Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 42.5 | 43.18 | 20.6 | 7,300uH, 32mOhm, 9.3Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 42.5 | 45 | 23.1 | 4,000uH, 12mOhm, 14.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 41.91 | 45 | 23.5 | 2,400uH, 8mOhm, 17Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 41.91 | 45 | 23.5 | 1,000uH, 7mOhm, 20Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 38.86 | 38.1 | 22 | 500uH, 5mOhm 14Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 41.91 | 47 | 24 | 600uH, 3.6mOhm 25Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 44 | 45 | 21.5 | 3.0mH, 13.0A Rated. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
