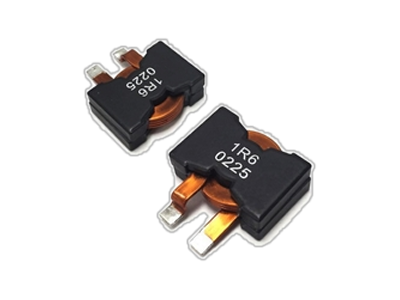

PQ87 Series
• Ferrite based inductor with lower core loss.
• Inductance Range: 0.47uH to 2.2uH, custom values are welcomed.
• High flux material for DC bias roll-off performance.
• Foot Print 22.0 x 22.7mm max.
• Coplanarity of 0.1mm max.
• Operating frequency up to 600.0KHz.
• Operating Temperature Range -40°C to + 150°C.
• RoHS and HF Compliant.
• T & R Qtys: 1,250 pcs , Box.
• Inductance Range: 0.47uH to 2.2uH, custom values are welcomed.
• High flux material for DC bias roll-off performance.
• Foot Print 22.0 x 22.7mm max.
• Coplanarity of 0.1mm max.
• Operating frequency up to 600.0KHz.
• Operating Temperature Range -40°C to + 150°C.
• RoHS and HF Compliant.
• T & R Qtys: 1,250 pcs , Box.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 6 | 22.7 | 22 | 0.47uH, 20%, 0.73mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6 | 22.7 | 22 | 0.9uH, 20%, 1.05mOhm, 48Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6 | 22.7 | 22 | 0.47uH, 20%, 0.73mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6 | 22.7 | 22 | 0.9uH, 20%, 1.05mOhm, 48Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 1uH, 20%, 1.05mOhm, 46Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 1.6uH, 20%, 1.4mOhm, 43Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 2.2uH, 20%, 1.75mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 0.6uH, 15%, 0.73mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 1uH, 20%, 1.05mOhm, 46Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 1.6uH, 20%, 1.4mOhm, 43Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 2.2uH, 20%, 1.75mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 7.2 | 22.7 | 22 | 0.6uH, 15%, 0.73mOhm, 60Amp Max. SMD Flat Wire Inductor | Data Sheet |
