- DIP

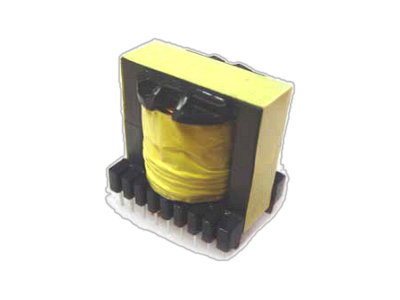

PFC02473452DV Series
• Ferrite core is used to realize lower core loss.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 47.0mm×34.0×52.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 47.0mm×34.0×52.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|
| 52 | 250 | 56.8 | 47 | 34 | 250uH, 20%, 56.8mOhm, 16.5Amp Max. DIP PFC Chokes | Data Sheet | ||
| 52 | 220 | 51.4 | 47 | 34 | 220uH, 20%, 51.4mOhm, 16.8Amp Max. DIP PFC Chokes | Data Sheet |
