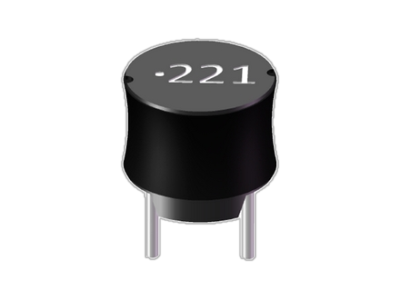

SCH3524T Series
• Radial leaded unshielded Drum Inductor.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
• Low DC Resistance for high current application.
• With UL rated shrink sleeve wrap to protect the winding.
• Ideal for noise filtering, storage and DC
• DC convertor applications.
• Inductance Range of 3.3uH to 1000.0uH,Custom values are welcomed.
• Operating Temperature Range: -55°C to + 130°C , RoHS & HF compliant.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9 | 6 | 9 | 10uH, 20%, 51mOhm, 5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 100uH, 10%, 389mOhm, 1.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 1,000uH, 10%, 4,316mOhm, 0.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 12uH, 20%, 55mOhm, 4.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 120uH, 10%, 464mOhm, 1.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 15uH, 20%, 70mOhm, 4.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 150uH, 10%, 640mOhm, 1.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 18uH, 20%, 90mOhm, 3.7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 180uH, 10%, 742mOhm, 1.25Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 22uH, 20%, 104mOhm, 3.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 220uH, 10%, 910mOhm, 1.05Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 27uH, 20%, 131mOhm, 3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 33uH, 20%, 152mOhm, 2.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 330uH, 10%, 1,376mOhm, 0.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 39uH, 20%, 178mOhm, 2.6Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 3.3uH, 20%, 20mOhm, 8.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 47uH, 20%, 200mOhm, 2.4Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 470uH, 10%, 1,951mOhm, 0.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 4.7uH, 20%, 25mOhm, 7.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 56uH, 20%, 237mOhm, 2.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 560uH, 10%, 2,415mOhm, 0.72Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 5.6uH, 20%, 28mOhm, 6.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 68uH, 20%, 274mOhm, 2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 680uH, 10%, 2,903mOhm, 0.65Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 6.8uH, 20%, 34mOhm, 5.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 82uH, 20%, 325mOhm, 1.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 820uH, 10%, 3,381mOhm, 0.56Amp Max. DIP Drum Inductor | Data Sheet | ||
| 9 | 6 | 9 | 8.2uH, 20%, 46mOhm, 5.3Amp Max. DIP Drum Inductor | Data Sheet |
