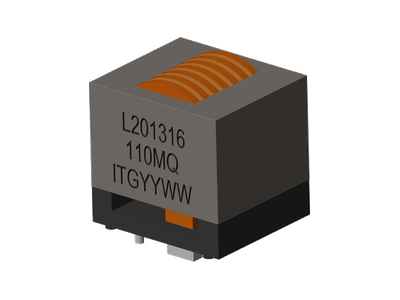

L201316Q Series
• Alloy powder based DIP Inductor with lower core loss.
• No Thermal aging concern.
• Inductance Range: 1.00uH to 290.0 uH, custom values are welcomed.
• High current output chokes, up to 98.0 Amp with approx. 30% roll off.
• For high power density & high power converters.
• Foot Print 33.0 x 32.0mm max. , 31.6mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• AEC-Q200 compliant.
• RoHs & HF compliant.
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332.
• No Thermal aging concern.
• Inductance Range: 1.00uH to 290.0 uH, custom values are welcomed.
• High current output chokes, up to 98.0 Amp with approx. 30% roll off.
• For high power density & high power converters.
• Foot Print 33.0 x 32.0mm max. , 31.6mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• AEC-Q200 compliant.
• RoHs & HF compliant.
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|
| 31.6 | 290 | 21 | 33 | 32 | 290.0uH, 20%, 21.0mOhm, 15.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 245 | 17 | 33 | 32 | 245.0uH, 20%, 17.00mOhm, 16.5A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 200 | 13.8 | 33 | 32 | 200.0uH, 20%, 13.80mOhm, 18.2A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 175 | 13.2 | 33 | 32 | 175.0uH, 20%, 13.20mOhm, 19.2A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 135 | 10.1 | 33 | 32 | 135.0uH, 20%, 10.10mOhm, 21.8A Max. DIP Flatwire Inductor | Data Sheet | 3D Step File | ||
| 31.6 | 105 | 7.1 | 33 | 32 | 105.0uH, 20%, 7.10mOhm, 25.0A Max. DIP Flatwire Inductor | Data Sheet | 3D Step File | ||
| 31.6 | 52 | 3.5 | 33 | 32 | 52.0uH, 20%, 3.50mOhm, 35.50A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 47 | 3.4 | 33 | 32 | 47.0uH, 20%, 3.40mOhm, 37.50A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 33 | 2.4 | 33 | 32 | 33.0uH, 20%, 2.40mOhm, 45.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 24 | 1.7 | 33 | 32 | 24.0uH, 20%, 1.70mOhm, 52.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 11.6 | 0.86 | 33 | 32 | 11.6uH, 20%, 0.86mOhm, 75.0A Max. DIP Flatwire Inductor | Data Sheet | 3D Step File | ||
| 31.6 | 3.3 | 0.39 | 33 | 19 | 3.3uH, 20%, 0.39mOhm, 61.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 2 | 0.31 | 33 | 17 | 2.0uH, 20%, 0.31mOhm, 76.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 31.6 | 1 | 0.21 | 33 | 15.5 | 1.0uH, 20%, 0.21mOhm, 98.0A Max. DIP Flatwire Inductor | Data Sheet |
