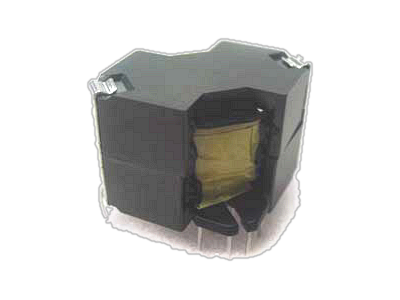

PFC01403925DV Series
• Ferrite cores are used to realize lower core loss.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 40.0mm×39.0×25.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• 40.0mm×39.0×25.0mm (L×W×H) Max. Custom value are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|
| 25 | 220 | 135 | 40 | 39 | 220uH, 20%, 135mOhm, 13.7Amp Max. DIP PFC Chokes | Data Sheet | ||
| 25 | 155 | 80 | 40 | 39 | 155uH, 20%, 80mOhm, 14Amp Max. DIP PFC Chokes | Data Sheet |
