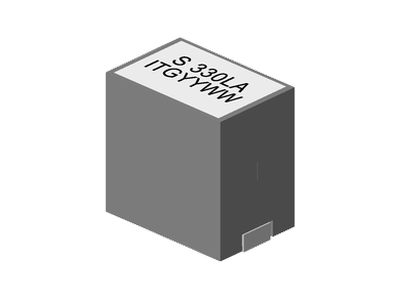

SLA40407A Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 100.0 nH to 330.0 nH , custom values are welcomed.
• High current output chokes, up to 128.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm max. height.
• Foot Print 10.00 x 7.00mm max.
• Ideal for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHS & HF compliant.
• T & R Qtys: 400 pcs , 13'' Reel.
• Inductance Range: 100.0 nH to 330.0 nH , custom values are welcomed.
• High current output chokes, up to 128.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm max. height.
• Foot Print 10.00 x 7.00mm max.
• Ideal for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHS & HF compliant.
• T & R Qtys: 400 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.33 | 0.125 | 74 | 40 | 10 | 7 | 330nH, 15%, 0.125mOhm, 40A Max. Power Bead SMD | Data Sheet | ||
| 10 | 0.15 | 0.125 | 74 | 84 | 10 | 7 | 150nH, 15%, 0.125mOhm, 84A MAX. Power Bead SMD | Data Sheet | ||
| 10 | 0.12 | 0.125 | 74 | 105 | 10 | 7 | 120nH, 15%, 0.125mOhm, 105A MAX. Power Bead SMD | Data Sheet | ||
| 10 | 0.1 | 0.125 | 74 | 128 | 10 | 7 | 100nH, 15%, 0.125mOhm, 128.0A MAX. Power Bead SMD | Data Sheet |
