- Filter

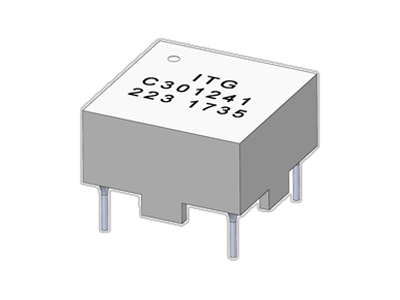

C301241 Series
• 14.2×14.2mm Max.(L×W),9.6mm Max. Height.
• Inductance range: 1.1mH～22.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material
• Operating temperature: -40 to +105
• Inductance range: 1.1mH～22.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material
• Operating temperature: -40 to +105
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9.6 | 14.2 | 14.2 | 1.1mH, 2A MAX, 65mOhm Through Hole Common Mode Choke | Data Sheet | ||
| 9.6 | 14.2 | 12mH, 0.3A Max, 1,100mOhm Through Hole Common Mode Choke | Data Sheet | |||
| 9.6 | 14.2 | 14.2 | 1.6mH, 1.5A Max, 110mOhm Through Hole Common Mode Choke | Data Sheet | ||
| 9.6 | 14.2 | 14.2 | 22mH, 0.3A Max, 1,500mOhm Through Hole Common Mode Choke | Data Sheet | ||
| 9.6 | 14.2 | 14.2 | 3.0mH, 1.0A Max, 220mOhm Through Hole Common Mode Choke | Data Sheet | ||
| 9.6 | 14.2 | 14.2 | 4.0mH, 0.6A Max, 400mOhm Through Hole Common Mode Choke | Data Sheet |
