- DIP

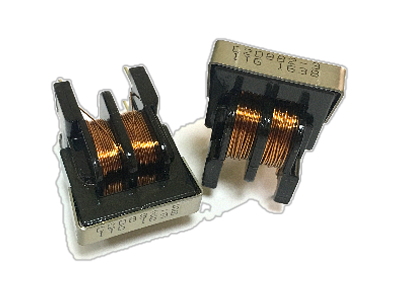

C20882 Series
• 22.5×19.0mm Max.(L×W), 27.5mm Max. Height.
• Inductance range: 1.5mH～30mH .Custom values are welcomed.
• Rated current up to 1.9A.
• Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, PC＆PC related advice, measurement attenuation and control unit with better characteristics in low frequency band.
• Operating Temperature Range -40°C to + 125°C ; RoHs & HF compliance.
• Inductance range: 1.5mH～30mH .Custom values are welcomed.
• Rated current up to 1.9A.
• Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, PC＆PC related advice, measurement attenuation and control unit with better characteristics in low frequency band.
• Operating Temperature Range -40°C to + 125°C ; RoHs & HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 27.5 | 22.5 | 19 | 1,500uH, 125mOhm, 1.9Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 27.5 | 22.5 | 19 | 4,000uH, 270mOhm, 1.2Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 27.5 | 22.5 | 19 | 8,000uH, 460mOhm, 0.9Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 27.5 | 22.5 | 19 | 20,000uH, 1600mOhm, 0.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 27.5 | 22.5 | 19 | 30,000uH, 2500mOhm, 0.4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter |
