- DIP

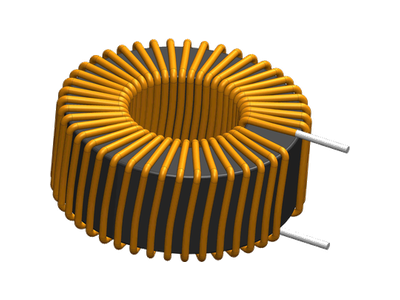

AP11681xxx Series
• Sendust core is used to realize lower core loss.
• No thermal aging concerns. Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Ø50.0 × 50.0 x 23.5mm Max. Custom values are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• No thermal aging concerns. Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Ø50.0 × 50.0 x 23.5mm Max. Custom values are welcomed.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 50 | 50 | 23.5 | 200uH, 20%, 31.23mOhm, 10.5Amp Max. DIP Toroidal Inductor | Data Sheet | |
| 50 | 50 | 23.5 | 220uH, 20%, 33.9mOhm, 10Amp Max. DIP Toroidal Inductor | Data Sheet | |
| 50 | 50 | 23.5 | 300uH, 20%, 38.68mOhm, 8.5Amp Max. DIP Toroidal Inductor | Data Sheet |
