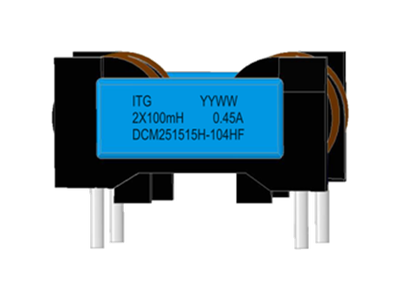

DCM251515H Series
• 24.5×15.5mm Max.(L×W),14.0mm Max. Height.
• Inductance range: 10.0mH～100.0mH.
• Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Inverter, Switch mode power supply, and Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1500Vac, 2s, winding to winding.
• Operating temperature: -55℃ to +130℃.
• UL Class B , RoHS & HF compliant.
• Inductance range: 10.0mH～100.0mH.
• Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Inverter, Switch mode power supply, and Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength: 1500Vac, 2s, winding to winding.
• Operating temperature: -55℃ to +130℃.
• UL Class B , RoHS & HF compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 24.5 | 15.5 | 10,000uH, 50%, 260mOhm, 1.6Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 100,000uH, 50%, 2670mOhm, 0.45Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 15,000uH, 50%, 430mOhm, 1.3Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 27,000uH, 50%, 770mOhm, 0.9Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 39,000uH, 50%, 1100mOhm, 0.8Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 47,000uH, 50%, 1260mOhm, 0.7Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 14 | 24.5 | 15.5 | 68,000uH, 50%, 1970mOhm, 0.6Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter |
