- DIP

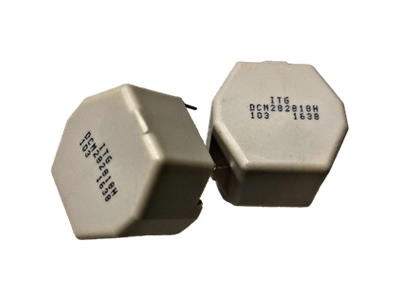

DCM282818H Series
• 28.0×28.0mm Max.(L×W),18.0mm Max. Height.
• Inductance range: 2.2mH～25.0mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switch Mode Power Supply, Inverter, Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃.
• Inductance range: 2.2mH～25.0mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switch Mode Power Supply, Inverter, Industrial Equipment.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 28 | 28 | 10,000uH, 30%, 170mOhm, 2.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 18 | 28 | 28 | 20,000uH, 30%, 300mOhm, 2Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 18 | 28 | 28 | 2,200uH, 30%, 34mOhm, 6Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 18 | 28 | 28 | 25,000uH, 30%, 430mOhm, 1.5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 18 | 28 | 28 | 3,300uH, 30%, 55mOhm, 5Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 18 | 28 | 28 | 5,000uH, 30%, 85mOhm, 4Amp Max. DIP Common Mode Chokes | Data Sheet | LT Spice | LT Spice | S Parameter |
