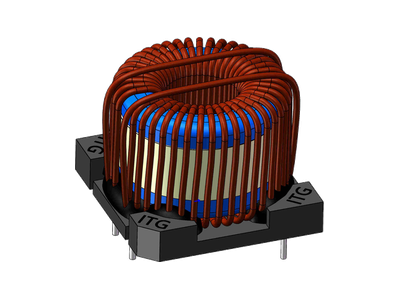

PFC183213D Series
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 210.0uH to 500.0uH, custom values are welcomed
• High current output chokes, up to 37.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 46.5×46.5mm max., 54.0 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 210.0uH to 500.0uH, custom values are welcomed
• High current output chokes, up to 37.1 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 46.5×46.5mm max., 54.0 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|
| 54 | 500 | 42 | 46.5 | 46.5 | Power Factor Correction Chokes 500.0uH, 24.0Amp, 42.0mOhm | Data Sheet | ||
| 54 | 355 | 30 | 46.5 | 46.5 | Power Factor Correction Chokes 355.0uH, 28.5Amp, 30.0mOhm | Data Sheet | ||
| 54 | 250 | 23 | 46.5 | 46.5 | Power Factor Correction Chokes 250.0uH, 34.0Amp, 23.0mOhm | Data Sheet | ||
| 54 | 210 | 21.5 | 46.5 | 46.5 | Power Factor Correction Chokes 210.0uH, 37.1Amp, 21.5mOhm | Data Sheet |
