- DIP

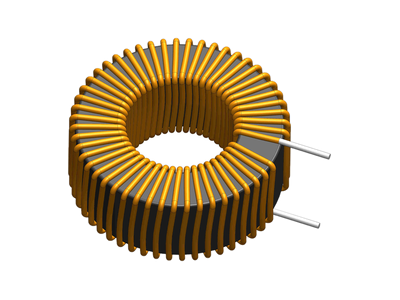

AP1157xxx Series
• Sendust core is used to realize lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance range from 200uH to 300uH. Custom values are welcomed
• Ideally used as Power Factor Correction choke
• Also can be used as boost inductor in power supplies
• Ø46.0 × 46.0 x 20.5mm Max. Custom values are welcomed
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance range from 200uH to 300uH. Custom values are welcomed
• Ideally used as Power Factor Correction choke
• Also can be used as boost inductor in power supplies
• Ø46.0 × 46.0 x 20.5mm Max. Custom values are welcomed
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 46 | 46 | 20.5 | 200uH, 20%, 42.61mOhm, 9.5Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 46 | 46 | 20.5 | 220uH, 20%, 45.56mOhm, 8.8Amp Max. DIP Toroidal Inductor | Data Sheet | ||
| 46 | 46 | 20.5 | 300uH, 20%, 54.62mOhm, 7.5Amp Max. DIP Toroidal Inductor | Data Sheet |
