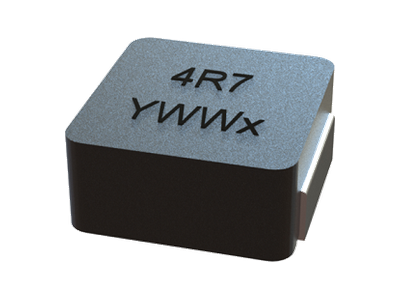

SM6827A Series
• 17.45 x 17.15mm Foot Print , 7.00mm Max. height SMD Power Inductor for high
• frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.47uH to 100.0 uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 155˚C.
• Tape & Reel Quantity: 200 piece per 13 inches reel. RoHS and HF compliant.
• frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.47uH to 100.0 uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 155˚C.
• Tape & Reel Quantity: 200 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 10 | 9.3 | 15 | 18 | 17.15 | 20.07 | 10uH, 20%, 9.30mOhm, 18Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 100 | 95 | 5.2 | 6.5 | 17.15 | 20.07 | 100uH, 20%, 95mOhm, 4.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 15 | 16.5 | 11 | 14.5 | 17.45 | 17.15 | 15.0uH, 20%, 16.5mOhm, 14.5A Max. Power Bead SMD | Data Sheet | ||
| 7 | 1 | 1.3 | 42 | 62 | 17.45 | 17.15 | 1uH, 20%, 1.30mOhm, 62Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 22 | 20.5 | 10 | 12 | 17.15 | 20.07 | 22.0uH, 20%, 20.5mOhm, 12Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 2.2 | 2.15 | 29 | 34 | 17.45 | 17.15 | 2.2uH, 20%, 2.150mOhm, 34Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 33 | 35.1 | 9.5 | 10 | 17.15 | 20.07 | 33.0uH, 20%, 35.10mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 3.3 | 2.79 | 24.5 | 27 | 17.45 | 17.15 | 3.3uH, 20%, 2.790mOhm, 27Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 47 | 41 | 6.5 | 7.5 | 17.45 | 17.15 | 47.0uH, 20%, 41mOhm, 7.5A Max. Power Bead SMD | Data Sheet | ||
| 7 | 4.7 | 4.12 | 22 | 24 | 17.45 | 17.15 | 4.7uH, 20%, 4.12mOhm, 24Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 68 | 66 | 5.2 | 6.5 | 17.15 | 20.07 | 68.0uH, 20%, 66.0mOhm, 6.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 6.8 | 6.55 | 17 | 22 | 17.45 | 17.15 | 6.8uH, 20%, 6.55mOhm, 22Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 8.2 | 8.1 | 16 | 20 | 17.45 | 17.15 | 8.2uH, 20%, 8.10mOhm, 20Amp Max. SMD Molded Inductor | Data Sheet | ||
| 7 | 0.47 | 0.78 | 57 | 85.5 | 17.45 | 17.15 | 0.47uH, 20%, 0.78mOhm, 85.5A Max. Power Bead SMD | Data Sheet | ||
| 7 | 0.68 | 1.05 | 47 | 80 | 17.45 | 17.15 | 0.68uH, 20%, 1.05mOhm, 80.0A Max. Power Bead SMD | Data Sheet |
