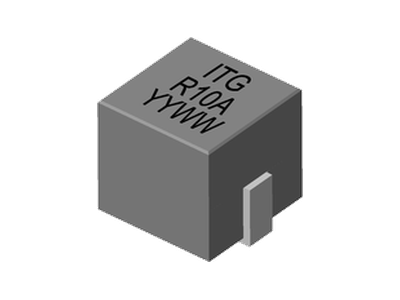

SL3028 Series

• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 50.0 nH to 220.0 nH , custom values are welcomed.
• High current output chokes, up to 150.0 Amp with approx. 20% roll off.
• Low Profile 7.00 mm Max. height.
• Foot Print 7.60 x 7.40 mm.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance .
• T & R Qtys: 750 pcs , 13'' Reel.

Data Sheet

Specification of SL3028 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SL3028A-R22KHF	7	0.22	0.5	49	35	7.6	7.4	0.22uH, 10%, 0.5mOhm, 35Amp Max. SMD Power bead	Data Sheet	3D Step File
SL3028A-R20KHF	7	0.2	0.5	49	39	7.6	7.4	0.2uH, 10%, 0.5mOhm, 39Amp Max. SMD Power bead	Data Sheet	3D Step File
SL3028A-R18KHF	7	0.18	0.5	49	43	7.6	7.4	0.18uH, 10%, 0.5mOhm, 43Amp Max. SMD Power bead	Data Sheet	3D Step File
SL3028A-R16KHF	7	0.16	0.5	49	50	7.4	7.5	160.0nH, 10%, 0.5mOhm, 50A Max. SMD Power Bead	Data Sheet	3D Step File
SL3028A-R15KHF	7	0.15	0.5	49	52	7.4	7.6	0.15uH, 10%, 0.5mOhm, 52Amp Max. SMD Power Bead	Data Sheet	3D Step File
SL3028A-R12KHF	7	0.12	0.5	49	65	7.4	7.6	0.12uH, 10%, 0.5mOhm, 65Amp Max. SMD Power Bead	Data Sheet	3D Step File
SL3028A-R10KHF	7	0.1	0.5	49	91	7.6	7.4	0.1uH, 10%, 0.5mOhm, 91Amp Max. SMD Power bead	Data Sheet	3D Step File
SL3028A-R07KHF	7	0.07	0.5	49	105	7.4	7.5	70.0nH, 10%, 0.50mOhm, 105Amp Max. SMD Power Bead	Data Sheet	3D Step File
SL3028A-R05KHF	7.2	0.05	0.5	49	150	7.4	7.5	50.0nH, 10%, 0.5mOhm, 150.0A Max. SMD Power Bead	Data Sheet	3D Step File
