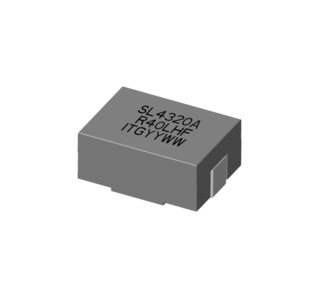

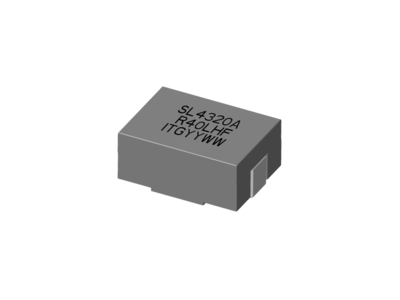

SL4320 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:55nH to 226nH. Custom values are welcomed.
• High current output chokes, upto 160.0 Amp with approx. 20% roll off.
• Low Profile 5.0mm
• 5.1mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1050 pcs , 13'' Reel.
• Inductance Range:55nH to 226nH. Custom values are welcomed.
• High current output chokes, upto 160.0 Amp with approx. 20% roll off.
• Low Profile 5.0mm
• 5.1mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1050 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.4 | 0.35 | 62 | 21 | 11 | 8 | 0.40uH, 15%, 0.35mOhm, 21.0Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.33 | 0.35 | 62 | 25 | 11 | 8 | 0.33uH, 15%, 0.35mOhm, 25.0Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.27 | 0.35 | 62 | 31 | 11 | 8 | 0.27uH, 15%, 0.35mOhm, 31.0Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.22 | 0.35 | 62 | 40 | 11 | 8 | 0.22uH, 10%, 0.35mOhm, 40Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.35 | 62 | 64 | 11 | 8 | 0.15uH, 10%, 0.35mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.12 | 0.35 | 62 | 78 | 11 | 8 | 0.12uH, 10%, 0.35mOhm, 78Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.1 | 0.35 | 62 | 93.5 | 11 | 8 | 0.1uH, 10%, 0.35mOhm, 93.5Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.085 | 0.35 | 62 | 103 | 11 | 8 | 0.085uH, 10%, 0.35mOhm,103.0Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.075 | 0.35 | 62 | 116 | 11 | 8 | 0.075uH, 10%, 0.35mOhm, 116.0Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.055 | 0.35 | 62 | 160 | 11 | 8 | 0.055uH, 10%, 0.35mOhm, 160.0Amp Max. SMD Power bead | Data Sheet |
