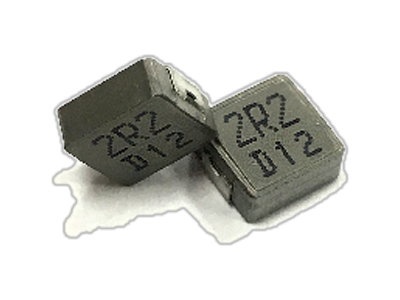

SMHC2511J Series
• 6.6x7.1mm foot Print, 3.0mm Max. height SMD Power Inductor for high frequency application.
• Inductance range from 0.10uH to 10.00uH.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Tablets, Notebook, Computers Servers, storage device, workstations, VGA card, Telecommunication Equipment, voltage-regulator modules & High Density DC to DC converter Board.
• Lower DC resistance for higher current application.
• Tight DCR control (5%).
• Tape & Reel Quantity: 1,000 piece per 13 inches reel.
• Operating Temperature Range -55°C to + 125°C.
• Inductance range from 0.10uH to 10.00uH.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Tablets, Notebook, Computers Servers, storage device, workstations, VGA card, Telecommunication Equipment, voltage-regulator modules & High Density DC to DC converter Board.
• Lower DC resistance for higher current application.
• Tight DCR control (5%).
• Tape & Reel Quantity: 1,000 piece per 13 inches reel.
• Operating Temperature Range -55°C to + 125°C.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 97 | 3 | 7 | 7.4 | 6.8 | 10uH, 20%, 97mOhm, 7Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1 | 8.44 | 11 | 22 | 7.4 | 6.8 | 1uH, 20%, 8.44mOhm, 22Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 1.5 | 14.5 | 9 | 18 | 7.4 | 6.8 | 1.5uH, 20%, 14.5mOhm, 18Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 2.2 | 16.4 | 8 | 14 | 7.4 | 6.8 | 2.2uH, 20%, 16.4mOhm, 14Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 3.3 | 28.5 | 6 | 13.5 | 7.4 | 6.8 | 3.3uH, 20%, 28.5mOhm, 13.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 4.7 | 33.5 | 5.5 | 10 | 7.4 | 6.8 | 4.7uH, 20%, 33.5mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 6.8 | 56 | 4.5 | 8 | 7.4 | 6.8 | 6.8uH, 20%, 56mOhm, 8Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 8.2 | 65 | 4 | 7.5 | 7.4 | 6.8 | 8.2uH, 20%, 65mOhm, 7.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.1 | 1.4 | 32.5 | 60 | 7.4 | 6.8 | 0.1uH, 20%, 1.4mOhm, 60Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.15 | 1.4 | 26 | 52 | 7.4 | 6.8 | 0.15uH, 20%, 1.4mOhm, 52Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.2 | 2.5 | 24 | 41 | 7.4 | 6.8 | 0.2uH, 20%, 2.5mOhm, 41Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.22 | 2.5 | 23 | 40 | 7.4 | 6.8 | 0.22uH, 20%, 2.5mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.33 | 3.3 | 20 | 30 | 7.4 | 6.8 | 0.33uH, 20%, 3.3mOhm, 30Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.47 | 3.85 | 17.5 | 26 | 7.4 | 6.8 | 0.47uH, 20%, 3.85mOhm, 26Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.68 | 5.15 | 15.5 | 25 | 7.4 | 6.8 | 0.68uH, 20%, 5.15mOhm, 25Amp Max. SMD Molded Inductor | Data Sheet | ||
| 3 | 0.82 | 7 | 13 | 24 | 7.4 | 6.8 | 0.82uH, 20%, 7mOhm, 24Amp Max. SMD Molded Inductor | Data Sheet |
