- SMD

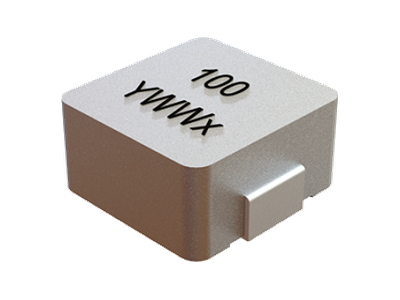

SM5026A Series
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 10 | 15 | 9 | 13.8 | 12.9 | 10.0uH, 20%, 15.0mOhm, 15Amp Max. SMD Power bead | Data Sheet | |||
| 2.5 | 15 | 24 | 8 | 13.8 | 12.9 | 15.0uH, 20%, 24.0mOhm, 13Amp Max. SMD Power bead | Data Sheet | |||
| 6.5 | 1 | 1.45 | 35 | 45 | 13.78 | 12.9 | 1.0uH, 20%, 1.45mOhm, 45Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 1.5 | 2.4 | 30 | 35 | 13.8 | 12.9 | 1.5uH, 20%, 2.15mOhm, 35Amp Max. SMD Power bead | Data Sheet | ||
| 2.5 | 47 | 70 | 6.5 | 13.8 | 12.9 | 47.0uH, 20%, 70.0mOhm, 9.5Amp Max. SMD Power bead | Data Sheet | |||
| 6.5 | 4.7 | 7.5 | 15 | 13.8 | 12.9 | 4.7uH, 20%, 7.5mOhm, 26Amp Max. SMD Power bead | Data Sheet | |||
| 6.5 | 5.6 | 9 | 12.5 | 13.8 | 12.9 | 5.6uH, 20%, 9.0mOhm, 24Amp Max. SMD Power bead | Data Sheet | |||
| 6.5 | 6.8 | 10.5 | 12 | 22 | 13.8 | 12.9 | 6.8uH, 20%, 10.5mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 8.2 | 13.5 | 10 | 13.8 | 12.9 | 8.2uH, 20%, 13.5mOhm, 16Amp Max. SMD Power bead | Data Sheet | |||
| 6.5 | 0.15 | 0.42 | 60 | 125 | 13.8 | 12.9 | 0.15uH, 20%, 0.42mOhm, 125Amp Max. SMD Power bead | Data Sheet |
