- SMD

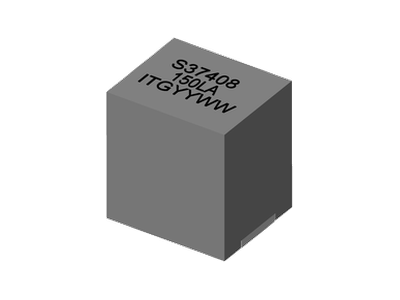

SLR37408 Series
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.18 | 0.16 | 69 | 9.41 | 8 | 180nH, 15%, 0.16mOhm, 69A Max, SMD Power Bead | Data Sheet | ||
| 10 | 0.15 | 0.16 | 82 | 9.41 | 8 | 150nH, 15%, 0.16mOhm, 82A Max, SMD Power Bead | Data Sheet | ||
| 10 | 0.12 | 0.16 | 105 | 9.41 | 8 | 120nH, 15%, 0.16mOhm, 105A Max, SMD Power Bead | Data Sheet | ||
| 10 | 0.1 | 0.16 | 120 | 9.41 | 8 | 100.0nH, 15%, 0.16mOhm, 120.0A Max SMD Power Bead | Data Sheet |
