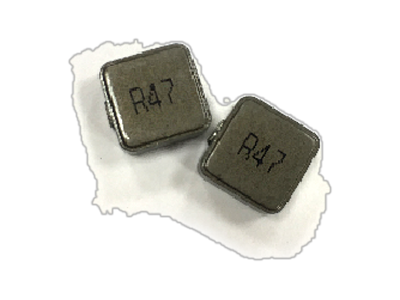

SMHC4020 Series

• 5mm Max. Height Molding Inductor for High Frequency Application.
• Inductance Range: 0.36uH to 2.80uH. Custom Values Welcomed.
• High Current Capability up to 40.0 Amp for Output Chokes Application.
• Ideal for Servers, Workstation Notebooks, VGA cards, and High Density Boards.
• Low DC Resistance and Compact Size for High Power Application.
• Quantity Per Reel: 500 pcs per 13" Reel.
• Operating Temperature Range -55°C to + 130°C.

Data Sheet

Specification of SMHC4020 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat10 (A) @25℃ Drop 30%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SMHC4020-1R0MHF	5	1	2.3	25	40	11.5	10.5	1uH, 20%, 2.3mOhm, 40Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-1R5MHF	5	1.5	2.7	23	30	11.5	10.5	1.5uH, 20%, 2.7mOhm, 30Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-2R2MHF	5	2.2	4.2	17	20	11.5	10.5	2.2uH, 20%, 4.2mOhm, 20Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-2R8MHF	5	2.8	6	12	18	11.5	10.5	2.8uH, 20%, 6mOhm, 18Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-R36MHF	5	0.36	0.75	32	32	11.5	10.5	0.36uH, 20%, 0.75mOhm, 32Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-R47MHF	5	0.47	1.04	29	32	11.5	10.5	0.47uH, 20%, 1.04mOhm, 32Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-R68MHF	5	0.68	1.7	27	30	11.5	10.5	0.68uH, 20%, 1.7mOhm, 30Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
SMHC4020-R72MHF	5	0.72	1.55	28	35	11.5	10.5	0.72uH, 20%, 1.55mOhm, 35Amp Max. SMD Molded Inductor	Data Sheet	3D Step File
