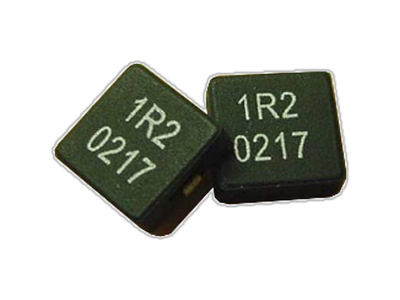

SC4018 Series
• 0.40” Package SMD Power Inductor.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 4.8 | 11 | 10.4 | 1uH, 20%, 1.83mOhm, 31Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.8 | 11 | 10.4 | 1.7uH, 20%, 4.8mOhm, 23Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.8 | 11 | 10.4 | 2.7uH, 20%, 6.45mOhm, 18Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.8 | 11 | 10.4 | 3.9uH, 20%, 7.4mOhm, 15.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.8 | 11 | 10.4 | 0.2uH, 20%, 0.5mOhm, 49Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 5 | 11 | 10.4 | 0.37uH, 20%, 0.93mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet |
