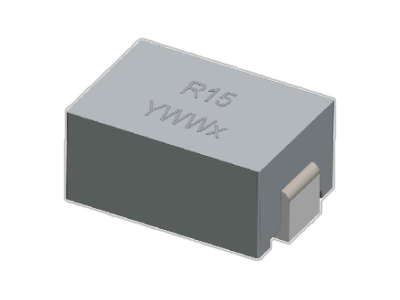

SMX40187A Series
• Molded Inductor in 11.90 x 7.30mm foot printHigh saturation current from distributed gap metal dust coreLow profile: 5.00mm Max. HeightIdeal for DC
• DC converters, PDA, Notebook and Server ApplicationOperating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 12mm pocket spacingRoHS and HF compliant
• DC converters, PDA, Notebook and Server ApplicationOperating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 12mm pocket spacingRoHS and HF compliant
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.09 | 0.33 | 53 | 120 | 11.9 | 7.3 | 0.09uH, 20%, 0.33mOhm, 120.0A Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.12 | 0.35 | 51 | 115 | 11.9 | 7.3 | 0.12uH, 20%, 0.35mOhm, 115.0A Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.15 | 0.38 | 50 | 80 | 11.9 | 7.3 | 0.15uH, 20%, 0.38mOhm, 80.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 5 | 0.22 | 0.55 | 45 | 70 | 11.9 | 7.3 | 0.22uH, 20%, 0.55mOhm, 70.0A Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.3 | 0.75 | 38 | 65 | 11.9 | 7.3 | 0.30uH, 20%, 0.75mOhm, 65.0A Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.33 | 0.82 | 36 | 58 | 11.9 | 7.3 | 0.33uH, 20%, 0.82mOhm, 58.0A Max. SMD Molded Inductor | Data Sheet | |||
| 5 | 0.47 | 1.25 | 35 | 50 | 11.9 | 7.3 | 0.47uH, 20%, 1.25mOhm, 50.0A Max. SMD Molded Inductor | Data Sheet |
