- DIP

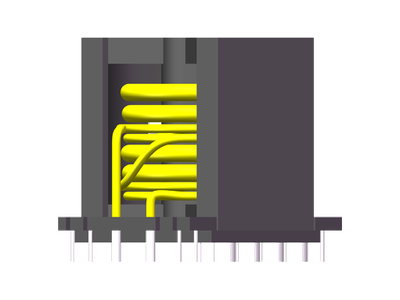

T181516 Series
• Half-bridge dual active LLC transformer ,The power of 1500W to 3000W
• operating frequency range:100KHz to 500KHz
• The inductance tolerance of 10%
• Inductance range:26.7uH to 129.0uH,custom values arewelcomed
• The leakage inductance can be adjusted to match the resonant inductance
• Maximum footprint:45.0 x 41.5 mm, with a maximum height of 38.0 mm
• Input voltage is 400 VDC to 800 VDC
• The turn ratio can be easily customized per application
• Dielectric strength:3500VDC(pri to sec),3500VDC (pri to core), 2500VDC (sec to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
• operating frequency range:100KHz to 500KHz
• The inductance tolerance of 10%
• Inductance range:26.7uH to 129.0uH,custom values arewelcomed
• The leakage inductance can be adjusted to match the resonant inductance
• Maximum footprint:45.0 x 41.5 mm, with a maximum height of 38.0 mm
• Input voltage is 400 VDC to 800 VDC
• The turn ratio can be easily customized per application
• Dielectric strength:3500VDC(pri to sec),3500VDC (pri to core), 2500VDC (sec to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 38 | 45 | 41.5 | 26.7uH, 10%, 0.16mOhm to 19.5mOhm DCR, 17Amp, 16:1:1, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 38 | 45 | 41.5 | 129.0uH, 10%, 0.36mOhm to 19.5mOhm DCR, 17Amp, 16:2:2, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 38 | 45 | 41.5 | 129.0uH, 10%, 0.57mOhm to 19.5mOhm DCR, 17Amp, 16:3:3, DIP Half-bridge dual active LLC Transformer | Data Sheet | ||
| 38 | 45 | 41.5 | 129.0uH, 10%, 1.05mOhm to 19.5mOhm DCR, 17Amp, 16:4:4, DIP Half-bridge dual active LLC Transformer | Data Sheet |
