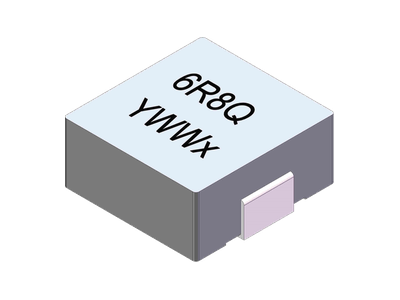

SM4018Q Series
• AEC-Q200 Grade 1 Compliant .
• 11.5 x 10.3 mm foot Print, 5.0mm Max. height SMD Power Inductor for high
• frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.68uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel with Plastic tape 24mm wide and 16mm pocket spacing.
• RoHS and HF compliant.
• 11.5 x 10.3 mm foot Print, 5.0mm Max. height SMD Power Inductor for high
• frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.68uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel with Plastic tape 24mm wide and 16mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 21.55 | 8 | 8 | 11.5 | 10.3 | 10.0uH, 20%, 21.55mOhm, 8.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 12 | 30.5 | 6.5 | 8 | 11.5 | 10.3 | 12.0uH, 20%, 30.5mOhm, 8.0A Max. SMD Molded Inductor | Data Sheet | ||
| 5 | 15 | 31 | 6 | 7.5 | 11.5 | 10.3 | 15.0uH, 20%, 31.0mOhm, 7.5A Max. SMD Power Bead | Data Sheet | ||
| 5 | 1 | 2.08 | 21 | 28 | 11.5 | 10.3 | 1.0uH, 20%, 2.08mOhm, 280.A Max. SMD Power Bead | Data Sheet | ||
| 5 | 1.2 | 2.1 | 21 | 26 | 11.5 | 10.3 | 1.2uH, 20%, 2.1mOhm, 26.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 1.5 | 2.85 | 18 | 25 | 11.5 | 10.3 | 1.5uH, 20%, 2.85mOhm, 25.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 22 | 51.5 | 5.5 | 7 | 11.5 | 10.3 | 22.0uH, 20%, 51.5mOhm, 7.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 2.2 | 3.83 | 16 | 22 | 11.5 | 10.3 | 2.2uH, 20%, 3.83mOhm, 22.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 2.8 | 5.15 | 13 | 21 | 11.5 | 10.3 | 2.8uH, 20%, 5.15mOhm, 21.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 33 | 69.5 | 4.2 | 5 | 11.5 | 10.3 | 33.0uH, 20%, 69.5mOhm, 5.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 3.3 | 9.4 | 12 | 20 | 11.5 | 10.3 | 3.3uH, 20%, 9.4mOhm, 20.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 47 | 96 | 3.5 | 4.5 | 11.5 | 10.3 | 47uH, 20%, 96.0mOhm, 4.5A Max. SMD Power Bead | Data Sheet | ||
| 5 | 4.7 | 11.8 | 11 | 15 | 11.5 | 10.3 | 4.7uH, 20%, 11.8mOhm, 15.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 5.6 | 13.8 | 10 | 14 | 11.5 | 10.3 | 5.6uH, 20%, 13.8mOhm, 14.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 6.8 | 17 | 9 | 12 | 11.5 | 10.3 | 6.8uH, 20%, 17.0mOhm, 12.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 0.68 | 1.6 | 26 | 32 | 11.5 | 10.3 | 0.68uH, 20%, 1.6mOhm, 32.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 0.72 | 1.65 | 26 | 30 | 11.5 | 10.3 | 0.72uH, 20%, 1.65mOhm, 30.0A Max. SMD Power Bead | Data Sheet | ||
| 5 | 0.9 | 1.74 | 22 | 29 | 11.5 | 10.3 | 0.90uH, 20%, 1.74mOhm, 29.0A Max. SMD Power Bead | Data Sheet |
