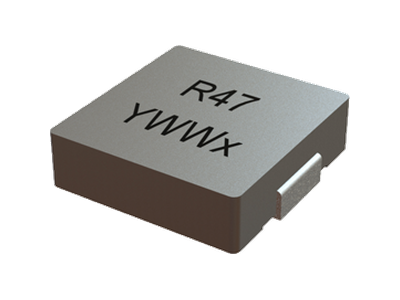

SM4013A Series
• 11.50 x 10.30mm foot print, 3.40mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.12uH to 3.30uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing.
• RoHS and HF compliant.
• Inductance range from 0.12uH to 3.30uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3.4 | 1 | 3.85 | 17.5 | 25 | 11.5 | 10.3 | 1.0uH, 20%, 3.85mOhm, 25.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3.4 | 1.5 | 5.1 | 15 | 20 | 11.5 | 10.3 | 1.5uH, 20%, 5.1mOhm, 20A Max. SMD Molded Inductor | Data Sheet | ||
| 3.4 | 2.2 | 6.45 | 13 | 15 | 11.5 | 10.3 | 2.2uH, 20%, 2.45mOhm, 15.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3.4 | 3.3 | 9.5 | 11.5 | 11 | 11.5 | 10.3 | 3.3uH, 20%, 9.5mOhm, 11.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3.4 | 0.12 | 0.455 | 40 | 70 | 11.5 | 10.3 | 0.12uH, 20%, 0.455mOhm, 70.0A Max. SMD Molded Inductor | Data Sheet | ||
| 3.4 | 0.47 | 1.3 | 30 | 42 | 11.5 | 10.3 | 0.47uH, 20%, 1.3mOhm, 42.0A Max. SMD Molded Inductor | Data Sheet |
