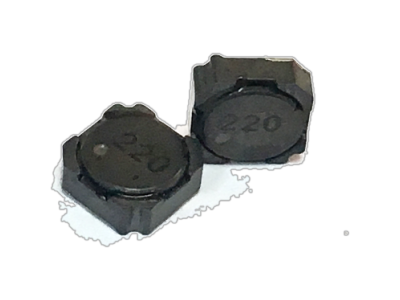

SDRR07630 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:1.2uH to 470uH. Custom values are welcomed.
• High current output chokes, upto 8.0 Amp with max. 35% roll off.
• Low Profile 3.0 mm Max. height.
• Foot Print 7.6 x 7.6 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
• Inductance Range:1.2uH to 470uH. Custom values are welcomed.
• High current output chokes, upto 8.0 Amp with max. 35% roll off.
• Low Profile 3.0 mm Max. height.
• Foot Print 7.6 x 7.6 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 7.6 | 3 | 7.6 | 10uH, 25%, 42.95mOhm, 3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 100uH, 25%, 445.5mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 15uH, 25%, 56.94mOhm, 2.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 150uH, 25%, 649.7mOhm, 0.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 1.2uH, 25%, 6.94mOhm, 8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 22uH, 25%, 86.84mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 220uH, 25%, 932.3mOhm, 0.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 2uH, 25%, 9.87mOhm, 6.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 2.7uH, 25%, 13.19mOhm, 5.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 33uH, 25%, 122.68mOhm, 1.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 330uH, 25%, 1,292mOhm, 0.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 3.6uH, 25%, 15.89mOhm, 4.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 47uH, 25%, 202.6mOhm, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 470uH, 25%, 2,150mOhm, 0.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 4.6uH, 25%, 21.12mOhm, 4.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 5.4uH, 25%, 26.08mOhm, 3.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 68uH, 25%, 320.2mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 6.8uH, 25%, 34.08mOhm, 3.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 3 | 7.6 | 8uH, 25%, 39.18mOhm, 3.2Amp Max. SMD Shielded Drum Inductor | Data Sheet |
