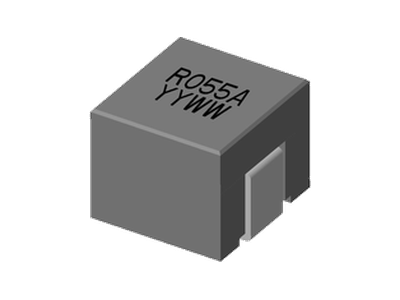

SL2218 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance range: 55.0nH to 160.0nH , custom values are welcomed.
• High current output chokes, upto 63.0 Amp with approx. 20% roll off.
• Low Profile 4.60mm Max. height.
• 5.50 x 5.70mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1000 pcs , 13'' Reel.
• Inductance range: 55.0nH to 160.0nH , custom values are welcomed.
• High current output chokes, upto 63.0 Amp with approx. 20% roll off.
• Low Profile 4.60mm Max. height.
• 5.50 x 5.70mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1000 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.6 | 0.16 | 0.2 | 34 | 18 | 5.5 | 5.7 | 160nH, 15%, 0.2mOhm, 18A MAX. Ferrite Bead SMD | Data Sheet | 3D Step File | ||
| 4.6 | 0.125 | 0.2 | 34 | 22 | 5.5 | 5.7 | 125nH, 15%, 0.2mOhm, 22A MAX. Ferrite Bead SMD | Data Sheet | 3D Step File | ||
| 4.6 | 0.1 | 0.2 | 34 | 33 | 5.7 | 5.5 | 100nH, 15%, 0.2mOhm, 33A MAX. Ferrite Bead SMD | Data Sheet | 3D Step File | ||
| 4.6 | 0.055 | 0.2 | 34 | 63 | 5.5 | 5.7 | 0.055uH, 15%, 0.2mOhm, 63Amp Max. SMD Power bead | Data Sheet | 3D Step File |
