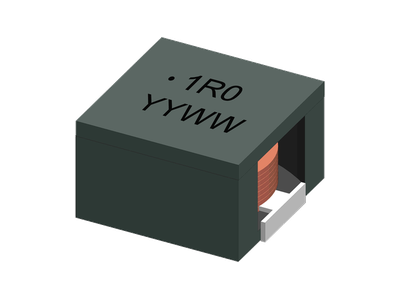

SC2515 Series
• Low profile 4.0mm maximum height SMD power inductor.Low core loss with no thermal aging.
• Ideal for DC to DC converter, VRM & High density board design.Tight DCR tolerance for accurate current sensing.
• Operating frequency of up to 3.0 MHz application.
• Low leakage flux. Rohs and Halogen Free Compliance.
• Operating temperature: -55 °C ~ +150 °C.
• Suitable for IR reflow and wave solder process.
• RoHS & HF compliant.
• Tape & Reel Qty: 1300 on a 13” Reel.
• Ideal for DC to DC converter, VRM & High density board design.Tight DCR tolerance for accurate current sensing.
• Operating frequency of up to 3.0 MHz application.
• Low leakage flux. Rohs and Halogen Free Compliance.
• Operating temperature: -55 °C ~ +150 °C.
• Suitable for IR reflow and wave solder process.
• RoHS & HF compliant.
• Tape & Reel Qty: 1300 on a 13” Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|
| 4 | 7.8 | 6.8 | 1uH, 20%, 4mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File | ||
| 4 | 7.8 | 6.8 | 1.5uH, 20%, 6mOhm, 20Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 6.8 | 6.8 | 1.8uH, 20%, 16mOhm, 9.6Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 6.8 | 6.8 | 2.3uH, 20%, 12.0mOhm, 14.0A Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 7.8 | 6.8 | 3uH, 20%, 13.4mOhm, 13.5Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 6.8 | 6.8 | 3.3uH, 20%, 14.80mOhm, 9.0A Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 7.8 | 6.8 | 5uH, 20%, 34.3mOhm, 7.3Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 6.8 | 6.8 | 0.33uH, 20%, 1.88mOhm, 40.0A Max. SMD Flaw Wire Inductor | Data Sheet | |||
| 4 | 7.8 | 6.8 | 0.47uH, 20%, 1.88mOhm, 30.0Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 6.8 | 6.8 | 0.6uH, 20%, 2.42mOhm, 21Amp Max. SMD Flat Wire Inductor | Data Sheet | |||
| 4 | 7.8 | 6.8 | 0.68uH, 20%, 2.42mOhm,27.4Amp Max. SMD Flat Wire Inductor | Data Sheet |
