- SMD

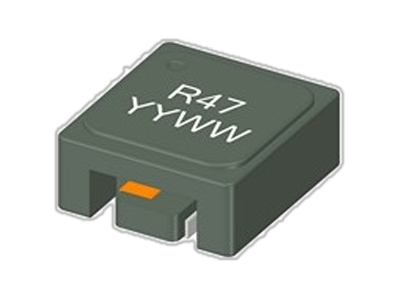

SC7232 Series
• 0.25” package SMD power inductor.
• Ideally for DC to DC converter, VRM & high density board design.
• Operating up to 3 MHz application.
• Low leakage flux.
• Low profile.
• Operating temperature: -40 °C to 150 °C.
• Suitable for IR reflow and wave solder process.
• Ideally for DC to DC converter, VRM & high density board design.
• Operating up to 3 MHz application.
• Low leakage flux.
• Low profile.
• Operating temperature: -40 °C to 150 °C.
• Suitable for IR reflow and wave solder process.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 3.6 | 7.6 | 7 | 1uH, 20%, 7.8mOhm, 15Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 1.5uH, 20%, 8.8mOhm, 14Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.5 | 7.2 | 2.2uH, 20%, 10.4mOhm, 13Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 3uH, 20%, 22.2mOhm, 8.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 0.1uH, 20%, 1.02mOhm, 32Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 0.22uH, 20%, 1.5mOhm, 28Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 0.47uH, 20%, 2.8mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3.6 | 7.6 | 7 | 0.72uH, 20%, 7.48mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet |
