- SMD

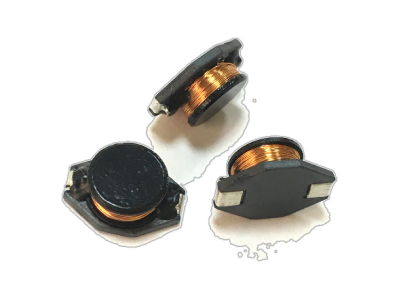

BF5220 Series
• Miniature SMD power inductor.
• Inductance range of 1.0uH to 1,000.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -40.0 °C up to +85.0°C.
• RoHS and HF Compliant.
• Tape and Reel quantities: 550pcs, Reel
• Inductance range of 1.0uH to 1,000.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -40.0 °C up to +85.0°C.
• RoHS and HF Compliant.
• Tape and Reel quantities: 550pcs, Reel
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 12.95 | 5.21 | 9.5 | 10uH, 20%, 29mOhm, 4.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 100uH, 20%, 300mOhm, 1.38Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 1000uH, 20%, 247mOhm, 0.45Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 15uH, 20%, 46mOhm, 3.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 1uH, 20%, 9mOhm, 14.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 1.5uH, 20%, 10mOhm, 10.89Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 22uH, 20%, 68mOhm, 3.06Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 2.2uH, 20%, 12mOhm, 9.27Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 33uH, 20%, 100mOhm, 2.43Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 330uH, 20%, 930mOhm, 0.77Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 3.3uH, 20%, 15mOhm, 7.65Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 47uH, 20%, 140mOhm, 2.1Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 470uH, 20%, 127mOhm, 0.66Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 4.7uH, 20%, 18mOhm, 6.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 68uH, 20%, 200mOhm, 1.67Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 680uH, 20%, 184mOhm, 0.52Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.95 | 5.21 | 9.5 | 6.8uH, 20%, 22mOhm, 5.4Amp Max. SMD Drum Inductor | Data Sheet |
