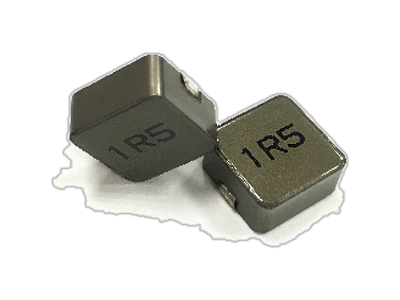

SMHC5026 Series
• Molded Inductor with lower core loss for high frequency application.
• Inductance Range:0.30uH to 22uH. Custom values are welcomed.
• High current output chokes, up to 80 Amp.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,VRMs & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 125°C ; RoHs compliance.
• Inductance Range:0.30uH to 22uH. Custom values are welcomed.
• High current output chokes, up to 80 Amp.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,VRMs & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 125°C ; RoHs compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 10 | 15 | 11 | 15.5 | 14.2 | 13.3 | 10uH, 20%, 15.0mOhm, 15.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 1 | 1.75 | 32 | 49 | 14.2 | 13.3 | 1uH, 20%, 1.75mOhm, 49Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 1.2 | 2.63 | 27 | 45 | 14.2 | 13.3 | 1.2uH, 20%, 2.63mOhm, 45Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 1.5 | 2.63 | 27 | 45 | 14.2 | 13.3 | 1.5uH, 20%, 2.63mOhm, 45Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 1.8 | 3.2 | 24 | 41 | 14.2 | 13.3 | 1.8uH, 20%, 3.2mOhm, 41Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 22 | 34.5 | 7 | 10 | 14.2 | 13.3 | 22.0uH, 20%, 34.5mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 2.2 | 3.3 | 23 | 40 | 14.2 | 13.3 | 2.2uH, 20%, 3.3mOhm, 40Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 3.3 | 5 | 19 | 34 | 14.2 | 13.3 | 3.3uH, 20%, 5.0mOhm, 34Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 4.7 | 8.1 | 13.5 | 30 | 14.2 | 13.3 | 4.7uH, 20%, 8.1mOhm, 30Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 6.8 | 10.8 | 13 | 18 | 14.2 | 13.3 | 6.8uH, 20%, 10.8mOhm, 18.0Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 8.2 | 12.8 | 12 | 17 | 14.2 | 13.3 | 8.2uH, 20%, 12.8mOhm, 17Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.3 | 0.71 | 48 | 80 | 14.2 | 13.3 | 0.3uH, 20%, 0.71mOhm, 80Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.33 | 0.73 | 48 | 70 | 14.2 | 13.3 | 0.33uH, 20%, 0.73mOhm, 70Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.4 | 0.77 | 46 | 64 | 14.2 | 13.3 | 0.4uH, 20%, 0.77mOhm, 64Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.47 | 1.03 | 41 | 63 | 14.2 | 13.3 | 0.47uH, 20%, 1.03mOhm, 63Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.56 | 1.28 | 36 | 62 | 14.2 | 13.3 | 0.56uH, 20%, 1.28mOhm, 62Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.68 | 1.28 | 36 | 60 | 14.2 | 13.3 | 0.68uH, 20%, 1.28mOhm, 60Amp Max. SMD Molded Inductor | Data Sheet | ||
| 6.5 | 0.82 | 1.47 | 35 | 50 | 14.2 | 13.3 | 0.82uH, 20%, 1.47mOhm, 50Amp Max. SMD Molded Inductor | Data Sheet |
