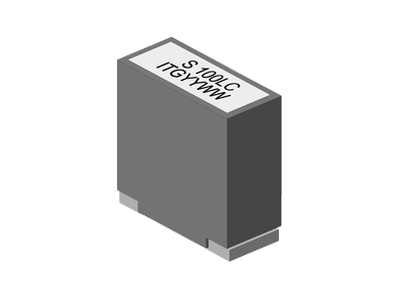

SLR40475C Series
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 135.0 Amp with approx. 20% roll off
• Low Profile 12.0 mm Max. height
• Foot Print 10.00 x 5.00 mm
• Co-Layout Single Inductor for AHA40475A Series of TLVR Inductor
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 135.0 Amp with approx. 20% roll off
• Low Profile 12.0 mm Max. height
• Foot Print 10.00 x 5.00 mm
• Co-Layout Single Inductor for AHA40475A Series of TLVR Inductor
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.15 | 0.16 | 64 | 64 | 10 | 5 | 150.0nH, 15%, 0.16mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.12 | 0.16 | 64 | 84 | 10 | 5 | 120.0nH, 15%, 0.16mOhm, 84Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.1 | 0.16 | 64 | 98 | 10 | 5 | 100.0nH, 15%, 0.16mOhm, 98Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.09 | 0.16 | 64 | 108 | 10 | 5 | 80.0nH, 15%, 0.16mOhm, 108Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.08 | 0.16 | 64 | 120 | 10 | 5 | 80.0nH, 15%, 0.16mOhm, 120Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.07 | 0.16 | 64 | 135 | 10 | 5 | 70.0nH, 15%, 0.16mOhm, 135Amp Max. SMD Power bead | Data Sheet |
