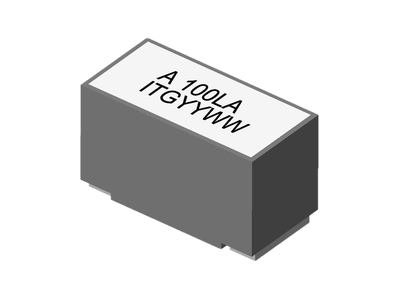

AHA41245A Series
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 100.0 Amp with approx. 20% roll off
• Low Profile 6.00 mm Max. height
• Foot Print 10.20 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 700 pcs , 13'' Reel
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 100.0 Amp with approx. 20% roll off
• Low Profile 6.00 mm Max. height
• Foot Print 10.20 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 700 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 0.15 | 0.5 | 45 | 45 | 10.2 | 5 | 150.0nH, 15%, 0.50mOhm, 45.0A Max. SMD Power Bead | Data Sheet | ||
| 6 | 0.12 | 0.5 | 45 | 58 | 10.2 | 5 | 120.0nH, 15%, 0.50mOhm, 58.0A Max. SMD Power Bead | Data Sheet | ||
| 6 | 0.1 | 0.5 | 45 | 70 | 10.2 | 5 | 100.0nH, 15%, 0.50mOhm, 70.0A Max. SMD Power Bead | Data Sheet | ||
| 6 | 0.07 | 0.5 | 45 | 100 | 10.2 | 5 | 70.0nH, 15%, 0.50mOhm, 100.0A Max. SMD Power Bead | Data Sheet |
