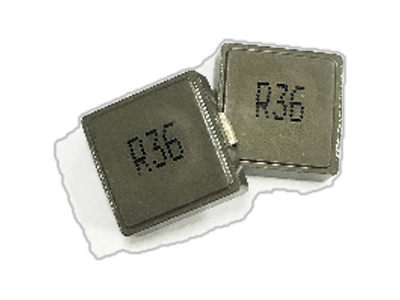

SMHC4015 Series
• Molding Inductor with lower core loss for high frequency application.
• Inductance Range:0.19uH to 100uH. Custom values are welcomed.
• High current output chokes, up to 90.0 Amp.with approx. 30% roll off.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 125°C ; RoHs compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
• Inductance Range:0.19uH to 100uH. Custom values are welcomed.
• High current output chokes, up to 90.0 Amp.with approx. 30% roll off.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 125°C ; RoHs compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 10 | 36.5 | 6.8 | 12 | 12.5 | 11 | 10uH, 20%, 36.5mOhm, 12Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 100 | 270 | 3 | 2.25 | 12.5 | 11 | 100uH, 20%, 270mOhm, 2.25Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 15 | 45 | 6.25 | 6 | 12.5 | 11 | 15uH, 20%, 45mOhm, 6Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1 | 4.1 | 17.5 | 36 | 12.5 | 11 | 1uH, 20%, 4.1mOhm, 36Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 22 | 66 | 5 | 4.5 | 12.5 | 11 | 22uH, 20%, 66mOhm, 4.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 2.2 | 9 | 12 | 25.5 | 12.5 | 11 | 2.2uH, 20%, 9mOhm, 25.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 33 | 94.5 | 4.4 | 4 | 12.5 | 11 | 33uH, 20%, 94.5mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 3.3 | 11.8 | 10 | 18.6 | 12.5 | 11 | 3.3uH, 20%, 11.8mOhm, 18.6Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 47 | 145 | 4 | 3 | 12.5 | 11 | 47uH, 20%, 145mOhm, 3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 4.7 | 16.5 | 9.5 | 17 | 12.5 | 11 | 4.7uH, 20%, 16.5mOhm, 17Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 5.6 | 19.3 | 8.5 | 16 | 12.5 | 11 | 5.6uH, 20%, 19.3mOhm, 16Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 6.8 | 23.3 | 8 | 13.5 | 12.5 | 11 | 6.8uH, 20%, 23.3mOhm, 13.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 8.2 | 34 | 7 | 12.5 | 12.5 | 11 | 8.2uH, 20%, 34mOhm, 12.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.19 | 0.95 | 40 | 90 | 12.5 | 11 | 0.19uH, 20%, 0.95mOhm, 90Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.36 | 1.4 | 31.5 | 60 | 12.5 | 11 | 0.36uH, 20%, 1.4mOhm, 60Amp Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.56 | 1.8 | 27.5 | 49 | 12.5 | 11 | 0.56uH, 20%, 1.8mOhm, 49Amp Max. SMD Molded Inductor | Data Sheet |
