- SMD

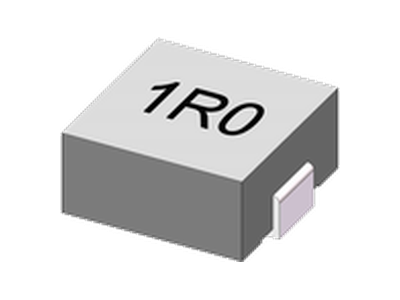

SM1608A Series
• Molded Inductor in 4.75x4.45mm foot print.
• High saturation current from distributed gap metal dust core.
• Low profile: 2.00mm Max. Height.
• Ideal for DC
• DC converters, PDA, Notebook and Server Application.
• Operating Temperature Range: -55˚C to 125˚C .
• T & R Qtys: 3,000pcs on a 13” Reel. RoHS and HF compliant.
• High saturation current from distributed gap metal dust core.
• Low profile: 2.00mm Max. Height.
• Ideal for DC
• DC converters, PDA, Notebook and Server Application.
• Operating Temperature Range: -55˚C to 125˚C .
• T & R Qtys: 3,000pcs on a 13” Reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 10 | 256.3 | 1.6 | 2 | 4.75 | 4.45 | 10uH, 20%, 256.3mOhm, 2Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 1 | 19.2 | 6 | 7 | 4.75 | 4.45 | 1uH, 20%, 19.2mOhm, 7Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 1.2 | 23 | 6 | 7 | 4.75 | 4.45 | 1.2uH, 20%, 23mOhm, 7Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 1.5 | 25.3 | 5 | 5.5 | 4.75 | 4.45 | 1.5uH, 20%, 25.3mOhm, 5.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 22 | 330 | 1.25 | 1.65 | 4.75 | 4.45 | 22uH, 20%, 330mOhm, 1.65A Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 2.2 | 40.2 | 4.5 | 5 | 4.75 | 4.45 | 2.2uH, 20%, 40.2mOhm, 5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 3.3 | 70.6 | 3.3 | 4 | 4.75 | 4.45 | 3.3uH, 20%, 70.6mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 4.7 | 103.4 | 2.8 | 3 | 4.75 | 4.45 | 4.7uH, 20%, 103.4mOhm, 3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 6.8 | 162.8 | 2.4 | 2.5 | 4.75 | 4.45 | 6.8uH, 20%, 162.8mOhm, 2.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.02 | 0.355 | 20 | 78 | 4.75 | 4.45 | 0.02uH, +20%/-30%, 0.355mOhm, 78Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.1 | 3.65 | 13 | 22 | 4.75 | 4.45 | 0.1uH, 20%, 3.65mOhm, 22Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.18 | 4.5 | 13 | 21 | 4.75 | 4.45 | 0.18uH, 20%, 4.50mOhm, 21Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.22 | 5 | 9.5 | 12.5 | 4.75 | 4.45 | 0.22uH, 20%, 5mOhm, 12.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.33 | 7.1 | 9 | 12 | 4.75 | 4.45 | 0.33uH, 20%, 7.1mOhm, 12Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.47 | 10.5 | 7.5 | 9.5 | 4.75 | 4.45 | 0.47uH, 20%, 10.5mOhm, 9.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.56 | 10.9 | 7.3 | 9.5 | 4.75 | 4.45 | 0.56uH, 20%, 10.9mOhm, 9.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 2 | 0.68 | 11.7 | 7 | 9 | 4.75 | 4.45 | 0.68uH, 20%, 11.7mOhm, 9Amp Max. SMD Molded Inductor | Data Sheet |
