- SMD

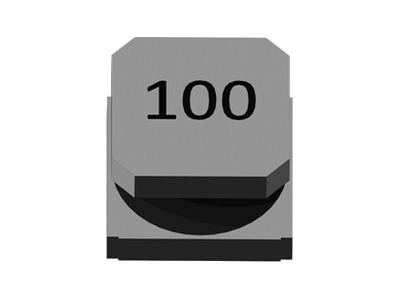

SPNR4220A Series
• Miniature SMD Shielded Power Inductor in a 4.2*4.2mm foot print.
• Low profile : 2.05mm max. height.
• Operating frequency of up to 5.0 MHz.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Inductance Range: 0.47uH to 10.0 uH , custom values are welcomed.
• Operating Temperature Range: -40°C to + 125°C.
• T & R Qtys: 3000 pcs , 13''
• Low profile : 2.05mm max. height.
• Operating frequency of up to 5.0 MHz.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Inductance Range: 0.47uH to 10.0 uH , custom values are welcomed.
• Operating Temperature Range: -40°C to + 125°C.
• T & R Qtys: 3000 pcs , 13''
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 4.2 | 2.05 | 4.2 | 10.0uH, 20%, 185.0mOhm, 3.6A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 1.0uH, 20%, 22.0mOhm, 9.6A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 1.5uH, 20%, 30.5mOhm, 8.3A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 2.2uH, 20%, 43.5mOhm, 6.1A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 3.3uH, 20%, 43.5mOhm, 5.8A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 4.7uH, 20%, 95.5mOhm, 4.3A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 6.8uH, 20%, 138.0mOhm, 3.9A Max. SMD Drum Inductor | Data Sheet | ||
| 4.2 | 2.05 | 4.2 | 0.47uH, 30%, 16mOhm, 17.0A Max. SMD Drum Inductor | Data Sheet |
