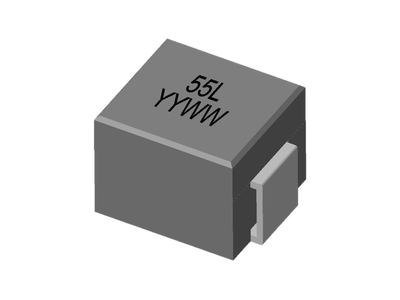

AF2218A Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 35.0 nH to 105.0 nH , custom values are welcomed.
• High current output chokes , up to 90.0 Amp with approx. 20% roll off.
• Low Profile 4.60 to 4.80 mm max height .
• 5.50 x 5.70 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 550pcs, 13'' Reel.
• Inductance range: 35.0 nH to 105.0 nH , custom values are welcomed.
• High current output chokes , up to 90.0 Amp with approx. 20% roll off.
• Low Profile 4.60 to 4.80 mm max height .
• 5.50 x 5.70 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 550pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 4.6 | 0.105 | 0.2 | 32 | 5.7 | 5.5 | 105nH, 10%, 0.2mOhm, 32A Max. SMD Power Bead | Data Sheet | ||
| 4.6 | 0.065 | 0.2 | 48 | 5.7 | 5.5 | 65nH, 15%, 0.2mOhm, 48A Max. SMD Power Bead | Data Sheet | ||
| 4.6 | 0.055 | 0.2 | 60 | 5.7 | 5.5 | 55nH, 15%, 0.2mOhm, 60A Max, SMD Power Bead | Data Sheet | ||
| 4.7 | 0.045 | 0.2 | 72 | 5.7 | 5.5 | 45nH, 15%, 0.2Mohm, 72A Max. SMD Power Bead | Data Sheet | ||
| 4.7 | 0.04 | 0.2 | 80 | 5.7 | 5.5 | 40nH, 15%, 0.2 mOhm, 80A Max. SMD Power Bead | Data Sheet | ||
| 4.8 | 0.035 | 0.2 | 90 | 5.7 | 5.5 | 35nH, 15%, 0.2mOhm, 90A Max, SMD Power Bead | Data Sheet |
