SMF2511B Series

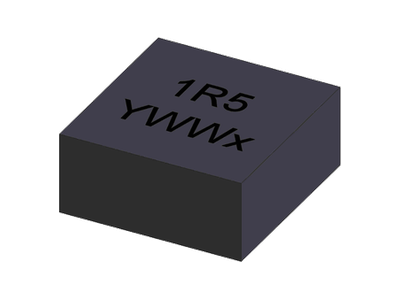

• 6.60 x 6.80 mm foot Print, 3.10mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz
• Inductance range from 0.18uH to 4.50uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing
• Inductance range from 0.18uH to 4.50uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 1500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.1 | 1 | 5.2 | 18 | 18 | 6.6 | 6.8 | 1.0uH, 20%, 5.20mOhm, 18.0A Max. SMD Molded Inductor | Data Sheet | Data Sheet | ||
| 3.1 | 1.5 | 7.95 | 15 | 15.5 | 6.6 | 6.8 | 1.5uH, 20%, 7.95mOhm, 15.5.0A Max. SMD Molded Inductor | Data Sheet | Data Sheet | ||
| 3.1 | 1.8 | 8.9 | 14 | 13 | 6.6 | 6.8 | 1.8uH, 20%, 8.90mOhm, 13.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3.1 | 4.5 | 21 | 7 | 8 | 6.6 | 6.8 | 4.5uH, 20%, 21.0mOhm, 8.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3.1 | 0.18 | 1.52 | 32 | 40 | 6.6 | 6.8 | 0.18uH, 20%, 1.52mOhm, 40.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3.1 | 0.33 | 2.17 | 25 | 32 | 6.6 | 6.8 | 0.33uH, 20%, 2.17mOhm, 32.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3.1 | 0.56 | 2.88 | 22 | 25 | 6.6 | 6.8 | 0.56uH, 20%, 2.88mOhm, 25.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3.1 | 0.68 | 3.55 | 20 | 21 | 6.6 | 6.8 | 0.68uH, 20%, 3.55mOhm, 21.0A Max. SMD Molded Inductor | Data Sheet |
