- SMD

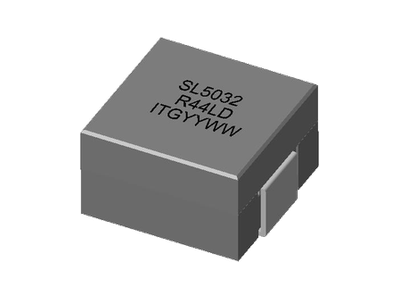

SL5032 Series
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 0.21uH to 0.44uH, Custom values are welcomed
• High current output chokes, up to 71.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 13.30 x 13.00 mm Max
• Ideal for Buck Converter, VRM & High Density Board Design
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
• Inductance Range: 0.21uH to 0.44uH, Custom values are welcomed
• High current output chokes, up to 71.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 13.30 x 13.00 mm Max
• Ideal for Buck Converter, VRM & High Density Board Design
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 400 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.44 | 0.18 | 60 | 35 | 13.3 | 13 | 0.44uH, 10%, 0.18mOhm, 35Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.32 | 0.18 | 60 | 54 | 13.3 | 13 | 0.32uH, 10%, 0.18mOhm, 54Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.26 | 0.18 | 60 | 61 | 13.3 | 13 | 0.26uH, 10%, 0.18mOhm, 61Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.21 | 0.18 | 60 | 71 | 13.3 | 13 | 0.21uH, 10%, 0.18mOhm, 71Amp Max. SMD Power bead | Data Sheet |
