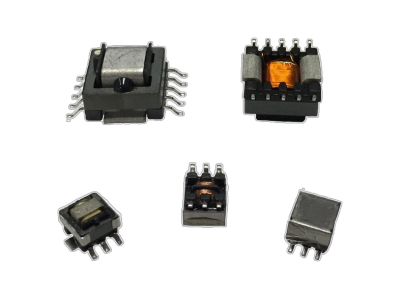

TREE0502ABQ Series
• Small size low profile SMD current sense transformer with full selection of turn ratios.
• Primarily rated for 20.0A AC rms.
• Inductance range from 80.0uH to 3.0mH. Custom values are welcomed.
• 8.38 x 7.21 mm Max. foot Print with 5.30 mm Max. height.
• Hi Pot rating of 500.0 Vrms.
• Ideal for current sense feedback control, Load drop sensing and high density DC to DC converter.
• Tape & Reel Quantity: 900 pieces per 13 inches reel.
• RoHS and HF compliant.
• Primarily rated for 20.0A AC rms.
• Inductance range from 80.0uH to 3.0mH. Custom values are welcomed.
• 8.38 x 7.21 mm Max. foot Print with 5.30 mm Max. height.
• Hi Pot rating of 500.0 Vrms.
• Ideal for current sense feedback control, Load drop sensing and high density DC to DC converter.
• Tape & Reel Quantity: 900 pieces per 13 inches reel.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 5.3 | 8.38 | 7.21 | 80uH, 0.55mOhm SMD Current sense Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 180uH, 0.87mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 320uH, 1.14mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 500uH, 1.5mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 720uH, 1.75mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 980uH, 4.75mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 2,000uH, 5.5mOhm SMD Transformer | Data Sheet | ||
| 5.3 | 8.38 | 7.21 | 3,000uH, 6.5mOhm SMD Transformer | Data Sheet |
