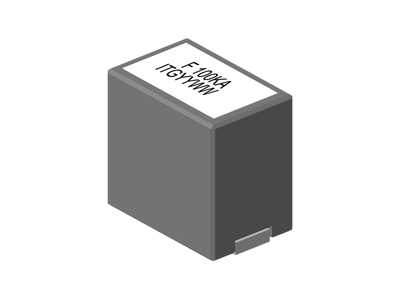

AF13A Series

• Ferrite based SMD inductor with lower core loss.
• High current output chokes of up to 165.0 Amp with approx. 20% roll off.
• Low profile 9.00 mm max. height.
• Foot Print 9.60 x 6.40 mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55°C to +130°C.
• RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.

Data Sheet

Specification of AF13A Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
AF13A-300K	9	0.3	0.17	66	33	9.6	6.4	0.3uH, 10%, 0.17 mOhm DCR, 33A SMD Power Bead	Data Sheet
AF13A-280K	9	0.28	0.17	66	35	9.6	6.4	0.28uH, 10%, 0.17 mOhm DCR, 35A SMD Power Bead	Data Sheet
AF13A-220K	9	0.22	0.17	66	44	9.6	6.4	0.22uH, 10%, 0.17 mOhm DCR, 44A SMD Power Bead	Data Sheet
AF13A-210K	9	0.21	0.17	66	48	9.6	6.4	0.21uH, 10%, 0.17 mOhm DCR, 48A SMD Power Bead	Data Sheet
AF13A-180K	9	0.18	0.17	66	60	9.6	6.4	0.18uH, 10%, 0.17 mOhm DCR, 60A SMD Power Bead	Data Sheet
AF13A-170K	9	0.17	0.17	66	65	9.6	6.4	0.17uH, 10%, 0.17 mOhm DCR, 65A SMD Power Bead	Data Sheet
AF13A-150K	9	0.15	0.17	66	75	9.6	6.4	0.15uH, 10%, 0.17 mOhm DCR, 75A SMD Power Bead	Data Sheet
AF13A-120K	9	0.12	0.17	66	94	9.6	6.4	0.12uH, 10%, 0.17 mOhm DCR, 94A SMD Power Bead	Data Sheet
AF13A-100K	9	0.1	0.17	66	124	9.6	6.4	100nH, 10%, 0.17mOhm, 124Amp Max. Power Bead SMD	Data Sheet
AF13A-90K	9	0.09	0.17	66	134	9.6	6.4	0.09uH, 10%, 0.17 mOhm DCR, 134A SMD Power Bead	Data Sheet
AF13A-75K	9	0.075	0.17	66	140	9.6	6.4	75nH, 10%, 0.17mOhm, 140Amp Max. Pwer Bead SMD	Data Sheet
AF13A-65L	9	0.065	0.17	66	160	9.6	6.4	65nH, 15%, 0.17mOhm, 165Amp Max. Power Bead SMD	Data Sheet
